steel cuplock system types of scaffolding and accessories manufacturer from China Rizhao Weiye Tools Co,. Ltd.

steel cuplock system types of scaffolding and accessories

Price:	5.28~22.67 USD
Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: Bundle

construction material: scaffoldings

Production Capacity: 800Ton per year

Delivery Date: 1month after confirm

Material:Carbon steel
Specification:1300-2000etc
Package:Europe standard package,with steel pallet and plastic woven bag
Delivery:Ocean shipping

Welcome you my friend!

This is good system scaffolding and scaffolding coupler factory.

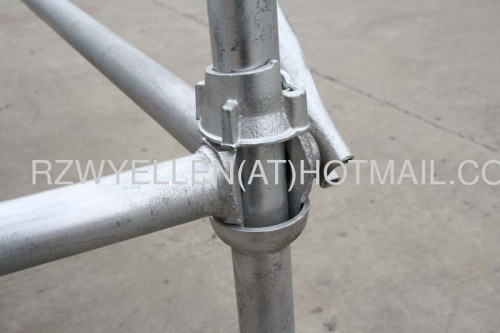

See cuplock scaffolding as follows:

Following is weiye tools co. products,pls read carefully if you want to get the best one.

our SGS report:

1.Material:High strength steel tube/Q235/Q345
2.Certificate: EN74,IS09001:2000
3.100% proof tested for complete safety

1) Quicker to set up than traditional coupler with tube system - up to 4 components secured in one fastening cup system;
2) Highly damage resistant capability;
3) Easy to work with scaffold wooden boards, steel decking platforms;
4) Heavy duty access up to 3kN/sq.m. platform loading for wide range of construction requirements.

Items	Spec.	Weight(kg)
1.Cuplock standard 0.5 Meter 1'-7-11/16'' w/s.spigot	1'-7-11/16''	3.47
2.Cuplock standard 1.0 Meter 3'-3'' w/s.spigot	3'-3''	6.08
3.Cuplock standard 1.5 Meter 4'-11'' w/s.spigot	4'-11''	8.58
4.Cuplock standard 2.0 Meter 6'-6'' w/s.spigot	6'-6''	11.37
5.Cuplock standard 2.5 Meter 8'-2'' w/s.spigot	8'-2''	13.80
6.Cuplock standard 3.0 Meter 9'-10'' w/s.spigot	9'-10''	16.23

System cuplock scaffolding frame accessories details:

No.	Product Name	Unit weitht(KG)with painting
1	1.0M cuplock standard	5.63
2	1.5M cuplock standard	8.11
3	2.0M cuplock standard	10.58
4	2.5M cuplock standard	13.06
5	3.0M cuplock standard	16.15
6	0.9M Ledger	3.38
7	1.0M Ledger	3.8
8	1.2M Ledger	4.49
9	1.3M Ledger	4.75
10	1.5M Ledger	5.51
11	1.8M Ledger	6.46
12	2.5M Ledger	8.82
13	1.3Mx2.0M cuplock scaffolding diagonal bar	7.44
14	1.8Mx2.0M cuplock scaffolding diagonal bar	8.47
15	2.5Mx2.0M cuplock scaffolding diagonal bar	10.18
16	565mm Bracket	6.27
17	795mm Bracket	7.22
18	Forged upper cup	0.5(Forging)
19	Pressing down cup	0.245(Forging)
20	Forged ledger balde	0.245(Forging)
21	Base jackΦ38x600	3.18(Electrogalvanizing)
